Nascent Micro Introduces Low Power Hall Switch NSM107x Series
2024-01-08 10:16:57
NanoMicro introduces the new NSM107x series of low-power Hall switches, providing a high-precision solution for digital position detection in a wide range of industrial and consumer electronics applications.
NanoMicro's New NSM107x Series of Hall Switches
The NSM107x product family consists of two models, the unipolar NSM1071 and the all-pole NSM1072, which can be used in a wide range of industrial and consumer electronics applications by providing user-selectable switching points, power consumption modes, output interfaces, packaging forms and other key features.
In factory automation control systems, industrial robots, and automated production equipment, the NSM107x can be used to detect mechanical motion, position, and speed information, and due to its low-power consumption, it can not only ensure reliable performance during long-time operation, but also reduce energy consumption. In the field of consumer electronics, the NSM107x is used in a wider range of applications, such as computer open-cover detection to automatically switch the screen on and off, and anti-collision detection for floor sweeping robots.

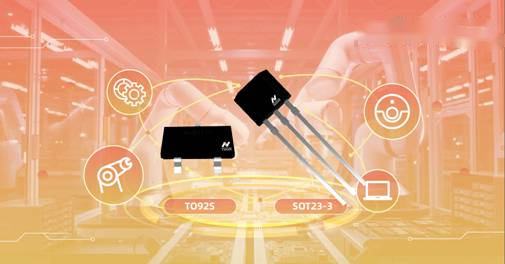

NSM107x series adopts TO92S and SOT23-3 packages, which are compatible with mainstream competitors in the market, and supports perforation welding and PCB surface mounting, which can realize direct chip replacement under the premise that the structural design remains unchanged.
Features of NSM107x series products
- Operating voltage range: 1.65V~5.5V
- High sensitivity, Bop/Brp selectable
- Extremely low power consumption: Normal power version with supply current as low as 1.4mA, low power version (20Hz) with average supply current as low as 1.5μA.
- Selectable output interface: Push-pull or open-drain
- Operating Temperature: -40℃~125℃
