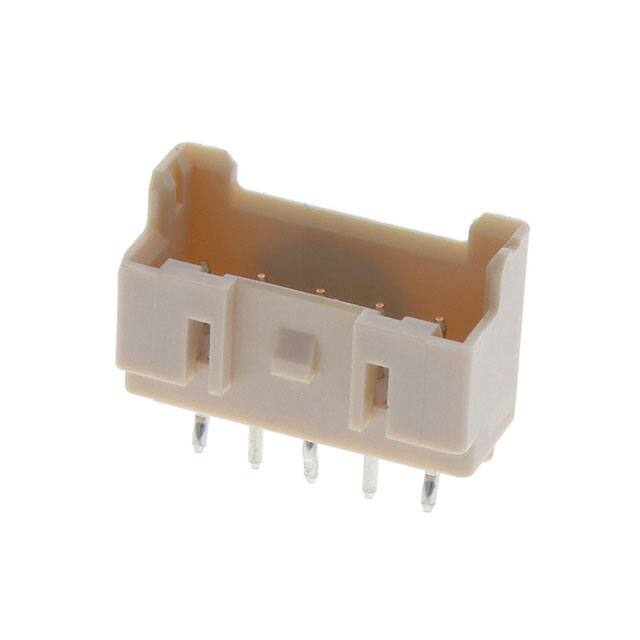

Image shown is a representation only.

JST Sales America Inc. B05B-XASK-1-A(LF)(SN)

$0.4

Manufacturer: JST Sales America Inc.
Model Name: B05B-XASK-1-A-LF-SN
Datasheet: Datasheet
Description: CONN HEADER VERT 5POS 2.5MM
Quantity

In stock: 3726

Bulk

Unit Price	Quantity	Ext Price
0.40	1	0.40
0.34	10	3.38
0.26	100	26.27
0.23	500	112.57
0.19	1000	187.61
0.16	5000	804.05
0.15	10000	1500.90

Standard packaging:: 1

If you have any questions about product prices, please request a quote from our sales.

Product Attributes

Mfr

JST Sales America Inc.
Series

XA
Package

Bulk
Product Status

Active
Connector Type

Header
Contact Type

Male Pin
Pitch - Mating

0.098" (2.50mm)
Number of Positions

5
Number of Rows

1
Row Spacing - Mating

-
Number of Positions Loaded

All
Style

Board to Cable/Wire
Shrouding

Shrouded - 4 Wall
Mounting Type

Through Hole
Termination

Press-Fit, Solder
Fastening Type

Locking Ramp
Contact Length - Mating

-
Contact Length - Post

0.118" (3.00mm)
Overall Contact Length

-
Insulation Height

0.346" (8.80mm)
Contact Shape

Circular
Contact Finish - Mating

Tin
Contact Finish Thickness - Mating

-
Contact Finish - Post

Tin
Contact Material

Copper Alloy
Insulation Material

Polyamide (PA66), Nylon 6/6, Glass Filled
Features

Board Guide
Operating Temperature

-25°C ~ 85°C
Ingress Protection

-
Material Flammability Rating

UL94 V-0
Insulation Color

Natural
Current Rating (Amps)

3A
Voltage Rating

250V
Mated Stacking Heights

11.3mm
Contact Finish Thickness - Post

-
Applications

-
Base Product Number

B05B-XAS
